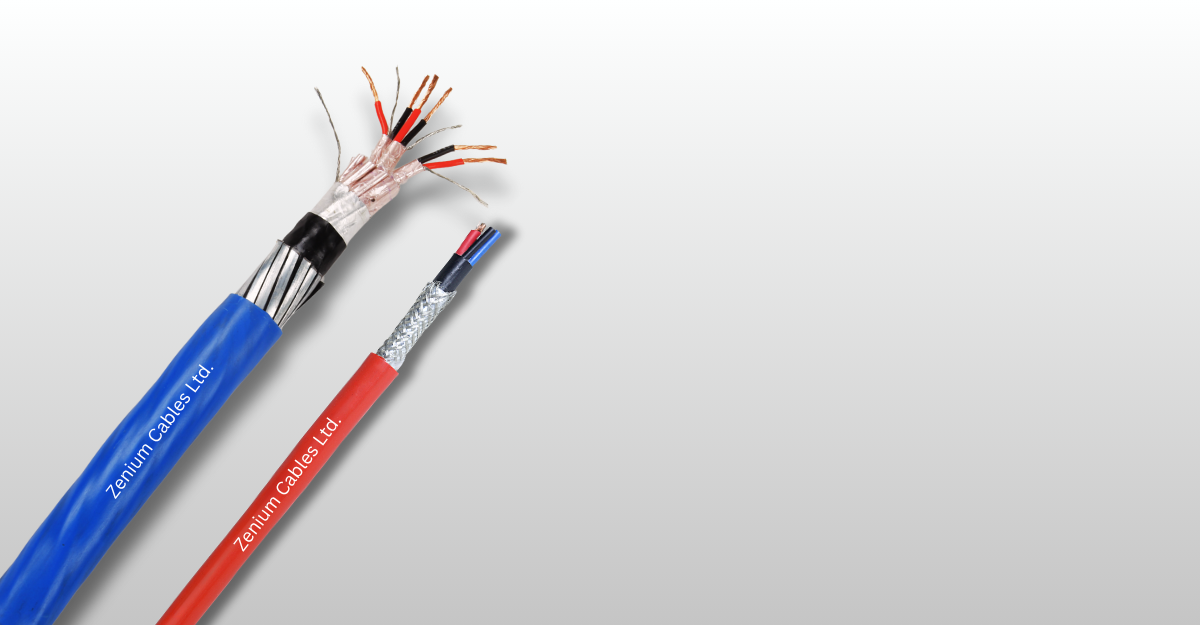

Instrumentation and Braided Cables

Braided, Shielded, and Instrumentation Cables are designed for signal transmission, process control, and data communication in industrial environments. These cables ensure minimal signal loss, excellent EMI/RFI protection, and enhanced durability, making them ideal for sensitive electronic and automation systems.

Types & Construction

Braided cables feature a woven metallic shield (usually copper or aluminum) that provides mechanical strength and protection against electromagnetic interference (EMI). These cables are highly flexible and durable, making them suitable for dynamic applications like robotics and industrial automation.

Conductor: High-purity electrolytic copper ensures low resistance & high efficiency
Insulation: PVC/XLPE insulation for thermal stability & electrical protection
Braiding: Tinned copper or aluminum braiding for EMI shielding & mechanical strength
Sheathing: Flame-retardant PVC/LSZH for long-term protection

Shielded cables have an additional conductive layer (foil, braid, or both) that minimizes external interference and enhances signal integrity in sensitive applications like audio, video, and industrial control systems.

Foil Shielding: Provides 100% coverage against EMI/RFI
Braided Shielding: Offers high mechanical protection & grounding efficiency
Combination Shielding: Uses both foil and braid for maximum noise suppression

Instrumentation cables are used for transmitting low-voltage signals in process control and automation. They provide reliable data transmission in industries like oil & gas, power plants, and automation systems.

Twisted Pair / Triad Design: Reduces crosstalk and improves signal clarity
Multiple shielding options: Foil, braid, or both for superior protection
Available in multi-core / pair / Triad variants: Up to 61 cores / Pair / Triad for complex systems

Key Features:

Superior EMI/RFI shielding – Ensures signal clarity in noisy industrial environments
High conductivity – Made from 99.97% pure electrolytic copper
Low capacitance & high signal integrity – Ideal for sensitive electronic applications
Flexible & easy to install – Suitable for tight spaces & dynamic movement
Heat & moisture resistant – Designed for long-term durability
Flame-retardant insulation – Ensures safety in critical environments
Corrosion & chemical resistant – Suitable for harsh industrial conditions
Available in single-core & multi-core variants – Customizable as per requirements
Compliant with international safety standards – Meets IEC, IS, and UL specifications

Applications :

Process control & automation systems
Data transmission in industrial plants
Oil, gas & petrochemical industries
Audio & video signal transmission
CCTV & security system wiring
Telecommunication & networking applications
Medical equipment & laboratories
Railway & metro signaling systems
Power plants & substations
SCADA & industrial communication networks

Zenium Cables Manufactures multi-core screened (Shielded / braided) flexible cables used for low noise signal cables and control purposes. These cables are generally confirming to PAS – 5308 and are manufactured with flexible copper conductors, PVC insulation, Tinned copper braided / shielded with overall PVC sheath. These cables are especially developed for defence, Telecommunication and electronic applications. Very feeble signals can be transmitted with least interference.

INSTRUMENTATION CABLES

Zenium manufactures multi-pair / triad instrumentation cables for use inside plants and electrical equipments where there is low frequency. These cables consists of annealed copper conductor draw from bright electrolytic grade copper PVC / POLYETHEYLENE / XLPE insulated, individually, or overall shielded with BOPP & AL MYLAR Tape, Tinned copper drain wire & overall PVC sheath. Here bunched conductors are insulated with various specially formulated and developed compounds with high resistance & low capacitance values.
